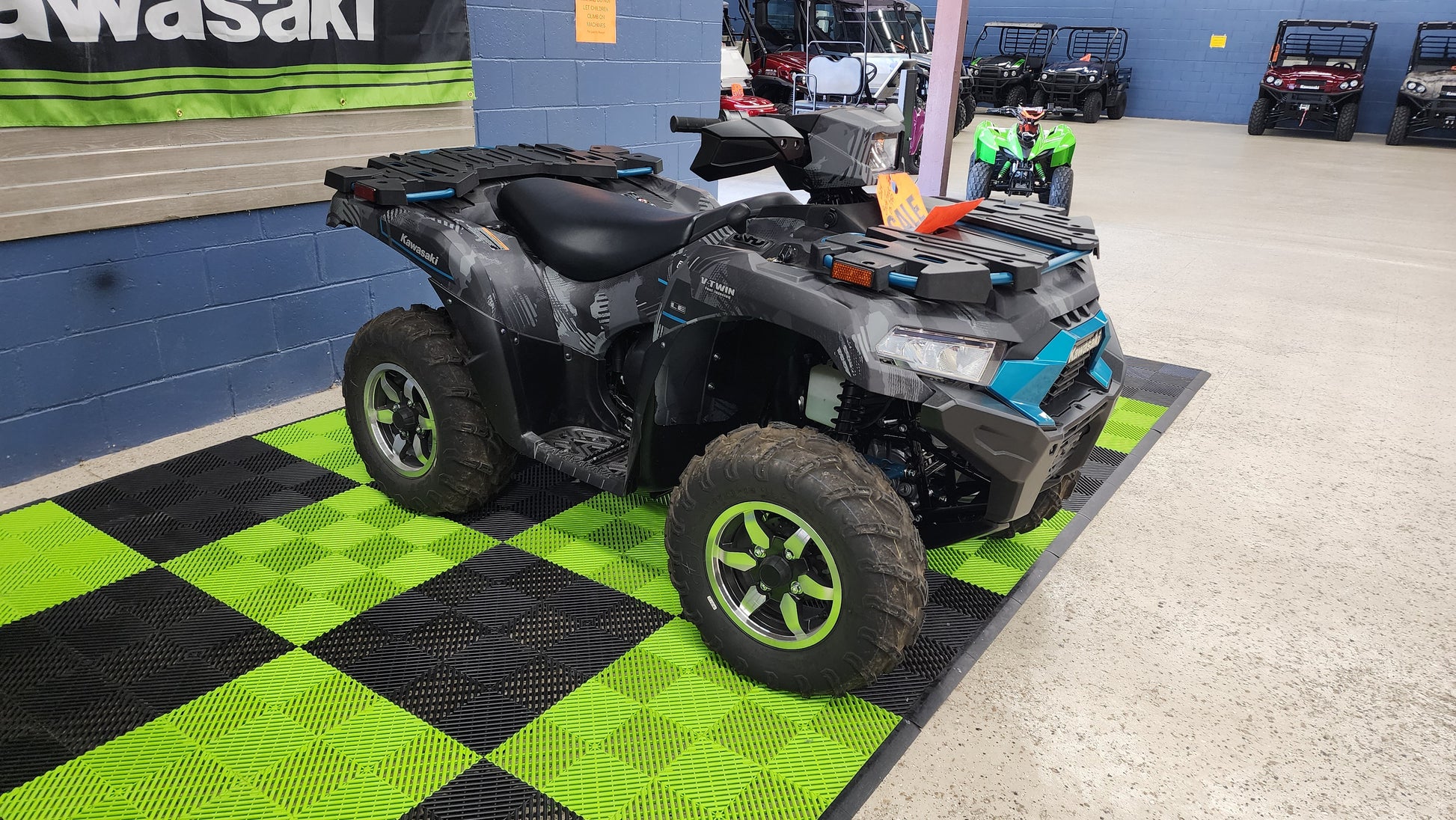

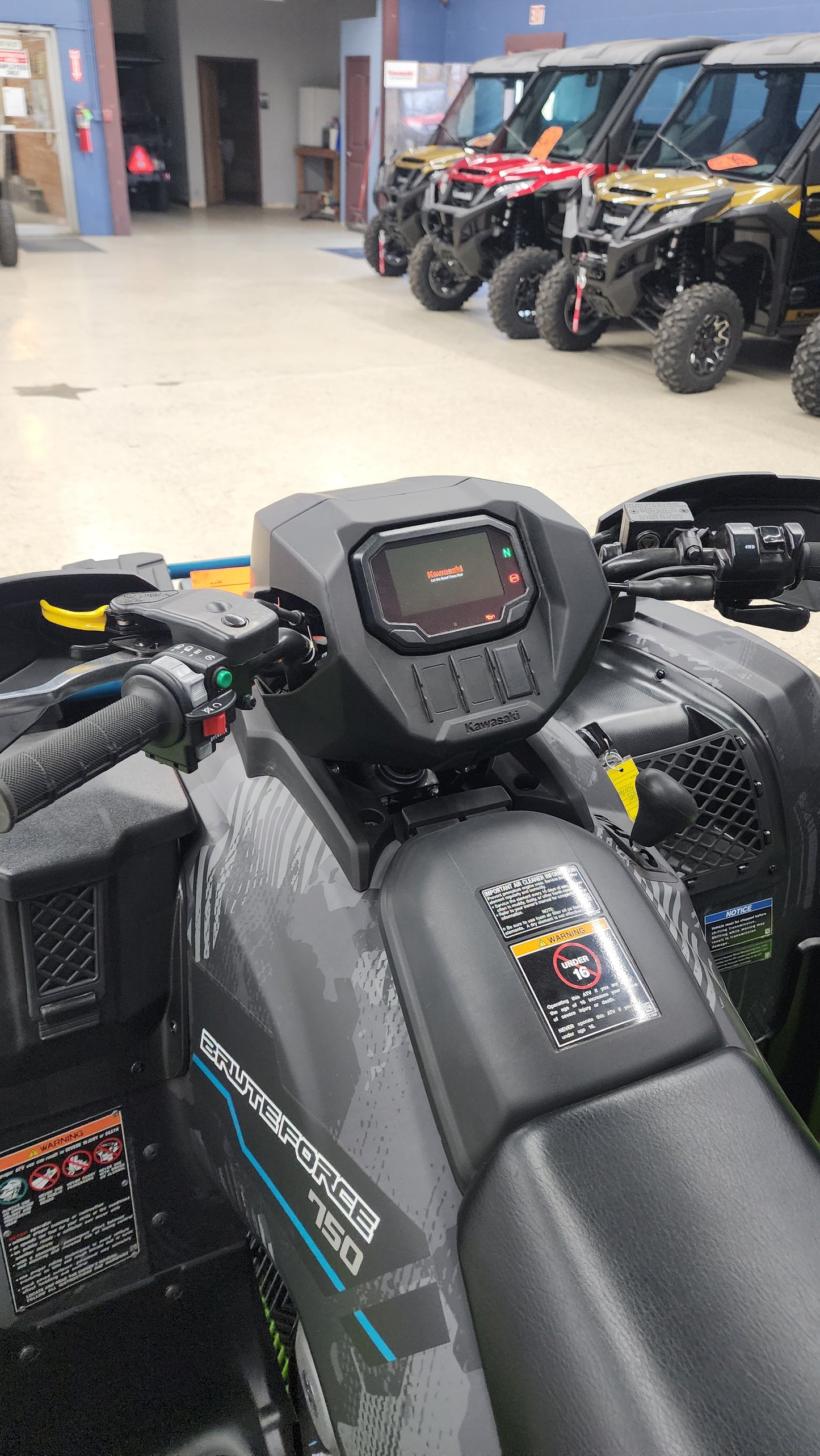

Kawasaki BRUTE FORCE® 750 LE EPS

POWER
Engine 4-stroke, V-twin, SOHC, liquid-cooled
Displacement 749cc
Bore x Stroke 85.0 x 66.0mm
Compression Ratio 9.3:1
Maximum Torque 42.7 lb-ft @ 4750 rpm
Fuel System DFI® with two 36mm throttle bodies
Ignition Digital DC-CDI
Transmission Automatic CVT (H,L,N,R)
Final Drive Selectable 2WD/4WD with variable control front
differential lock, shaft

CAPABILITY
Front Suspension /
Wheel Travel
Double wishbone, adjustable spring preload/6.9 in
Rear Suspension /
Wheel Travel
Double wishbone, adjustable spring preload/7.4 in
Front Tire AT 25 x 8-12
Rear Tire AT 25 x 10-12
Front Brakes Dual hydraulic 176mm discs with 2-piston calipers
Rear Brakes Sealed, oil-bathed, multi-disc with independent park
brake
Ground Clearance 9.0 in/9.6 in (max preload)
Starting System Electric
Fuel Capacity 5.0 gal
Steering Rack-and-pinion w/ Electric Power Steering (EPS)
Turning Radius 10.5 ft
Towing Capacity 1,250 lb
Total Rack Capacity 264.5 lb
Rack Capacity,
Front/Rear
88.0/176.0 lb
Lighting All-LED lighting

DETAILS
Frame Type Double-cradle, high-tensile tubular steel
Tread Width 37.0/35.6 in
Overall Length 86.0 in
Overall Width 46.1 in
Overall Height 47.6 in
Seat Height 35.2 in
Curb Weight 732.1 lb*
Wheelbase 50.6 in

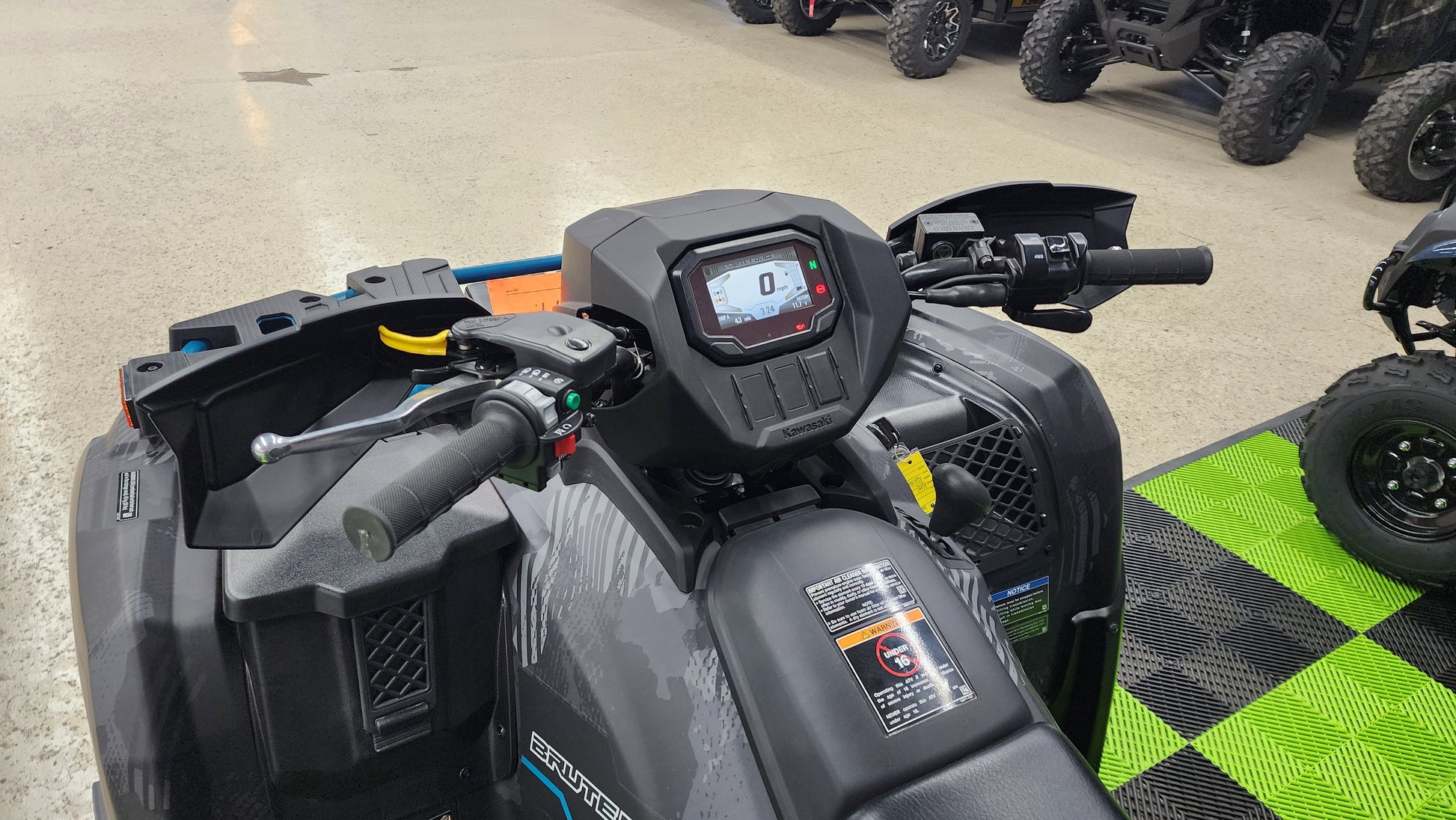

Instruments Digital speedometer, 2WD/4WD drive indicator, fuel
gauge, odometer, dual trip meters, dual hour meter,
clock (12h/24h), battery voltage, Kawasaki service
reminder, oil change reminder, high beam, neutral,
reverse, and warning lights (engine, coolant
temperature, CVT, oil, EPS, and battery voltage)
Special Features Full-color TFT Instrumentation, KQR™ system
Color Choices Pearl Matte Sage Green, Cypher Camo Gray
