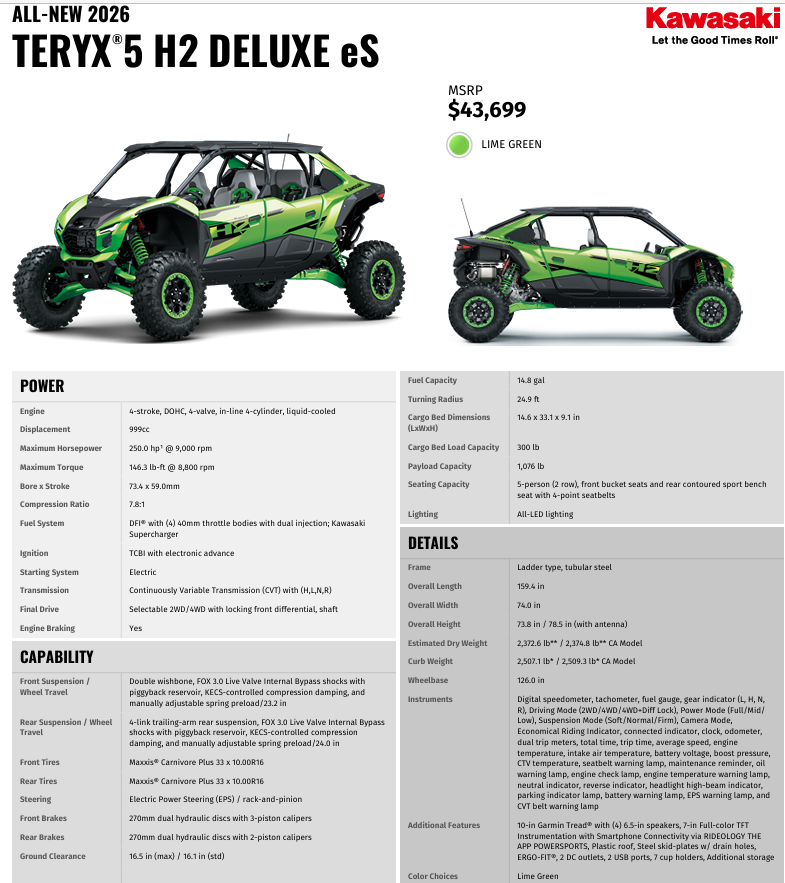

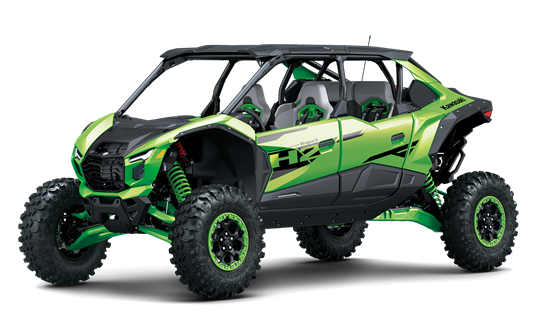

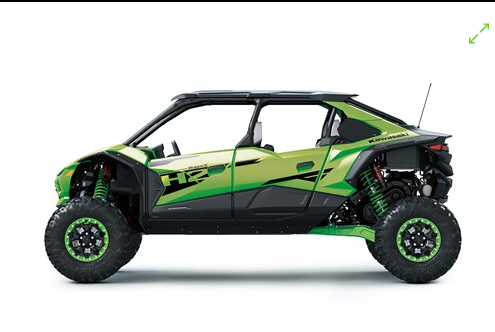

2026 Kawasaki Teryx 5 H2 Deluxe eS

2026 Kawasaki Teryx 5 H2 Deluxe eS

$43,699.00 USD
$43,699.00 USD
Sale Sold out



POWER
Engine 4-stroke, DOHC, 4-valve, in-line 4-cylinder, liquid-cooled
Displacement 999cc
Maximum Horsepower 250.0 hp¹ @ 9,000 rpm
Maximum Torque 146.3 lb-ft @ 8,800 rpm
Bore x Stroke 73.4 x 59.0mm
Compression Ratio 7.8:1
Fuel System DFI® with (4) 40mm throttle bodies with dual injection; Kawasaki Supercharger
Ignition TCBI with electronic advance
Starting System Electric
Transmission Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive Selectable 2WD/4WD with locking front differential, shaft
Engine Braking Yes
CAPABILITY
Front Suspension / Wheel Travel Double wishbone, FOX 3.0 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually adjustable spring preload/23.2 in
Rear Suspension / Wheel Travel 4-link trailing-arm rear suspension, FOX 3.0 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually adjustable spring preload/24.0 in
Front Tires Maxxis® Carnivore Plus 33 x 10.00R16
Rear Tires Maxxis® Carnivore Plus 33 x 10.00R16
Steering Electric Power Steering (EPS) / rack-and-pinion
Front Brakes 270mm dual hydraulic discs with 3-piston calipers
Rear Brakes 270mm dual hydraulic discs with 2-piston calipers
Ground Clearance 16.5 in (max) / 16.1 in (std)
Fuel Capacity 14.8 gal
Turning Radius 24.9 ft

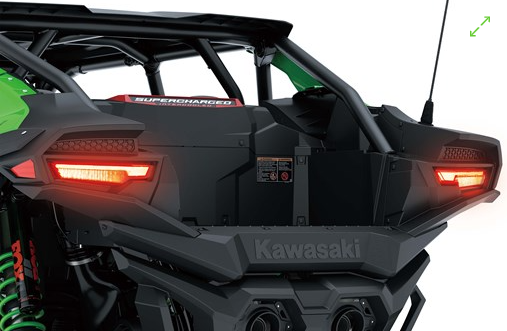

Cargo Bed Dimensions (LxWxH) 14.6 x 33.1 x 9.1 in
Cargo Bed Load Capacity 300 lb
Payload Capacity 1,076 lb

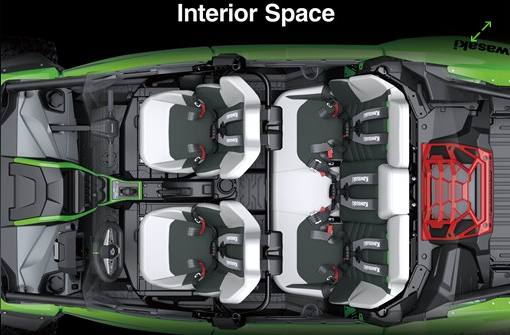

Seating Capacity 5-person (2 row), front bucket seats and rear contoured sport bench seat with 4-point seatbelts
Lighting All-LED lighting



DETAILS
Frame Ladder type, tubular steel
Overall Length 159.4 in
Overall Width 74.0 in
Overall Height 73.8 in / 78.5 in (with antenna)
Estimated Dry Weight 2,372.6 lb** / 2,374.8 lb** CA Model
Curb Weight 2,507.1 lb* / 2,509.3 lb* CA Model
Wheelbase 126.0 in
Instruments Digital speedometer, tachometer, fuel gauge, gear indicator (L, H, N, R), Driving Mode (2WD/4WD/4WD+Diff Lock), Power Mode (Full/Mid/Low), Suspension Mode (Soft/Normal/Firm), Camera Mode, Economical Riding Indicator, connected indicator, clock, odometer, dual trip meters, total time, trip time, average speed, engine temperature, intake air temperature, battery voltage, boost pressure, CTV temperature, seatbelt warning lamp, maintenance reminder, oil warning lamp, engine check lamp, engine temperature warning lamp, neutral indicator, reverse indicator, headlight high-beam indicator, parking indicator lamp, battery warning lamp, EPS warning lamp, and CVT belt warning lamp
Additional Features 10-in Garmin Tread® with (4) 6.5-in speakers, 7-in Full-color TFT Instrumentation with Smartphone Connectivity via RIDEOLOGY THE APP POWERSPORTS, Plastic roof, Steel skid-plates w/ drain holes, ERGO-FIT®, 2 DC outlets, 2 USB ports, 7 cup holders, Additional storage
Color Choices Lime Green

ADDITIONAL VEHICLE FEATURES:

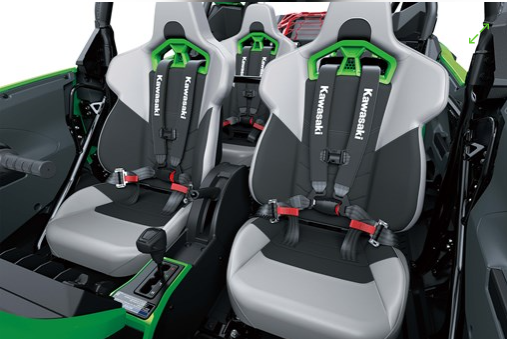

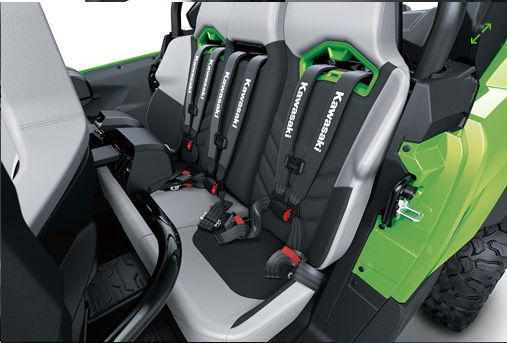

  • 2 high-backed bucket seats up front, 3-person high-backed contoured sport bench seat in the rear, all equipped with 4-point seatbelts
  • Predictable handling with speed-sensitive Electric Power Steering (EPS)
  • FOX 3.0 Live Valve Internal Bypass shocks
  • Kawasaki Electronic Control Suspension (KECS) with Acceleration Sensors
  • 10-in Garmin Tread® off-road navigation system with group ride radio & audio system capability
  • 33-in Maxxis® Carnivore Plus tires with 16-in aluminum bead-lock wheels
  • Abundant storage & convenience features including USB outlets, DC socket, cup holders, and more
  • Plastic roof
View full details
