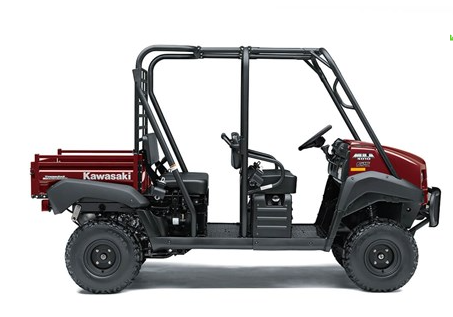

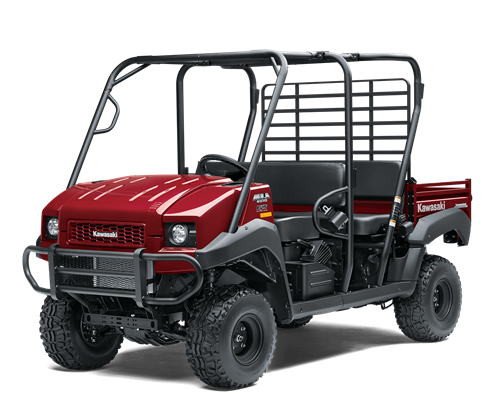

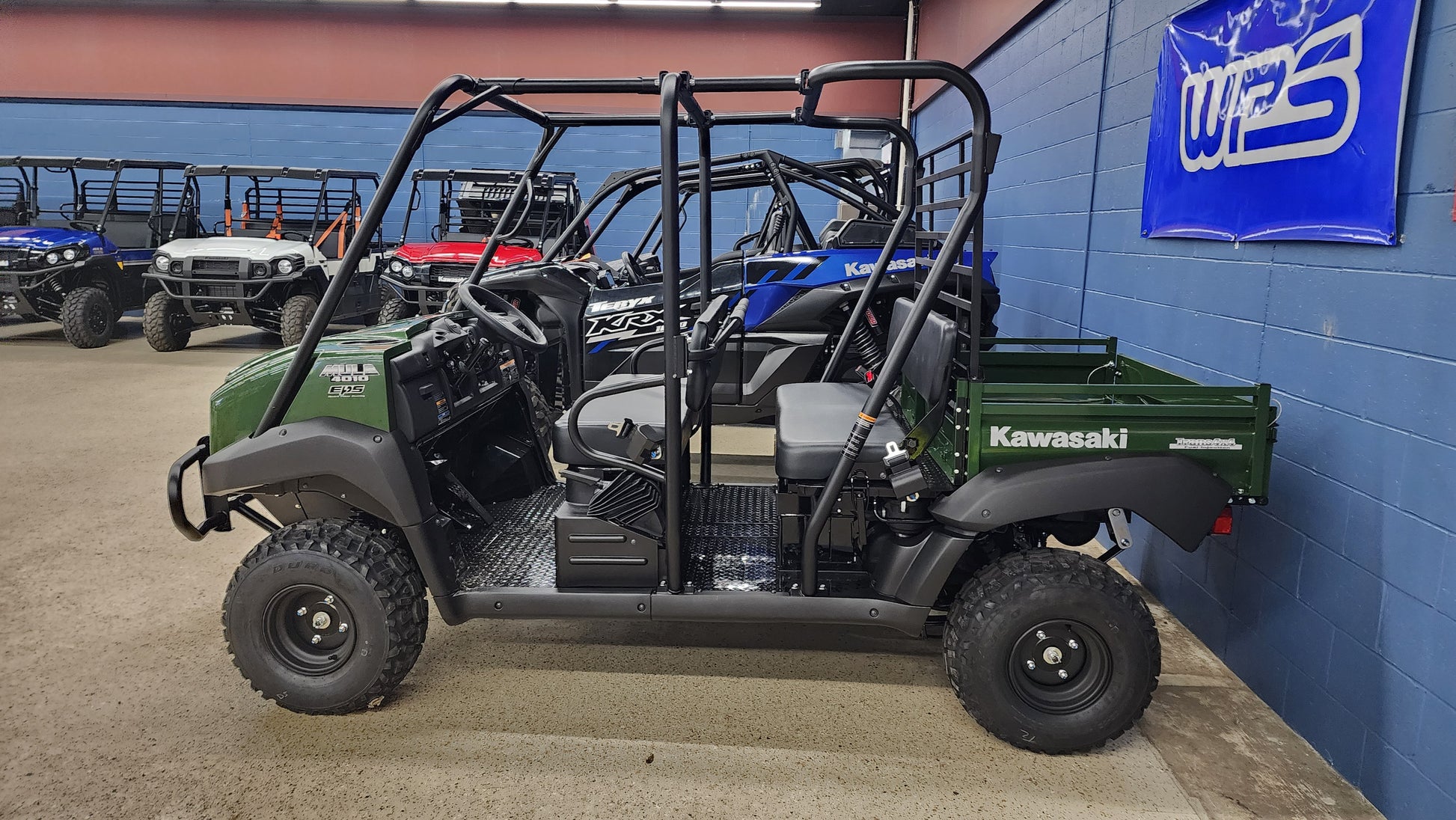

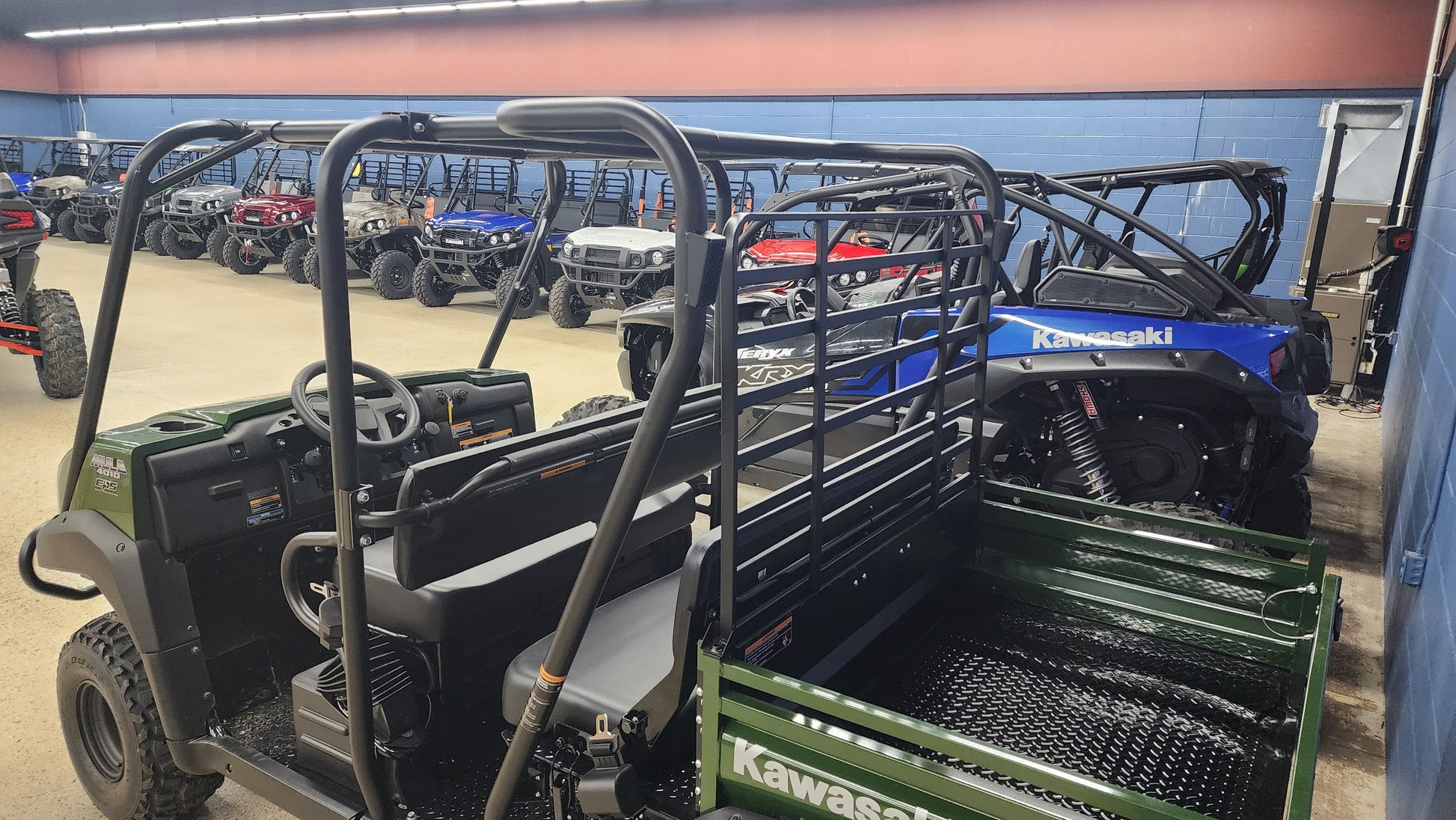

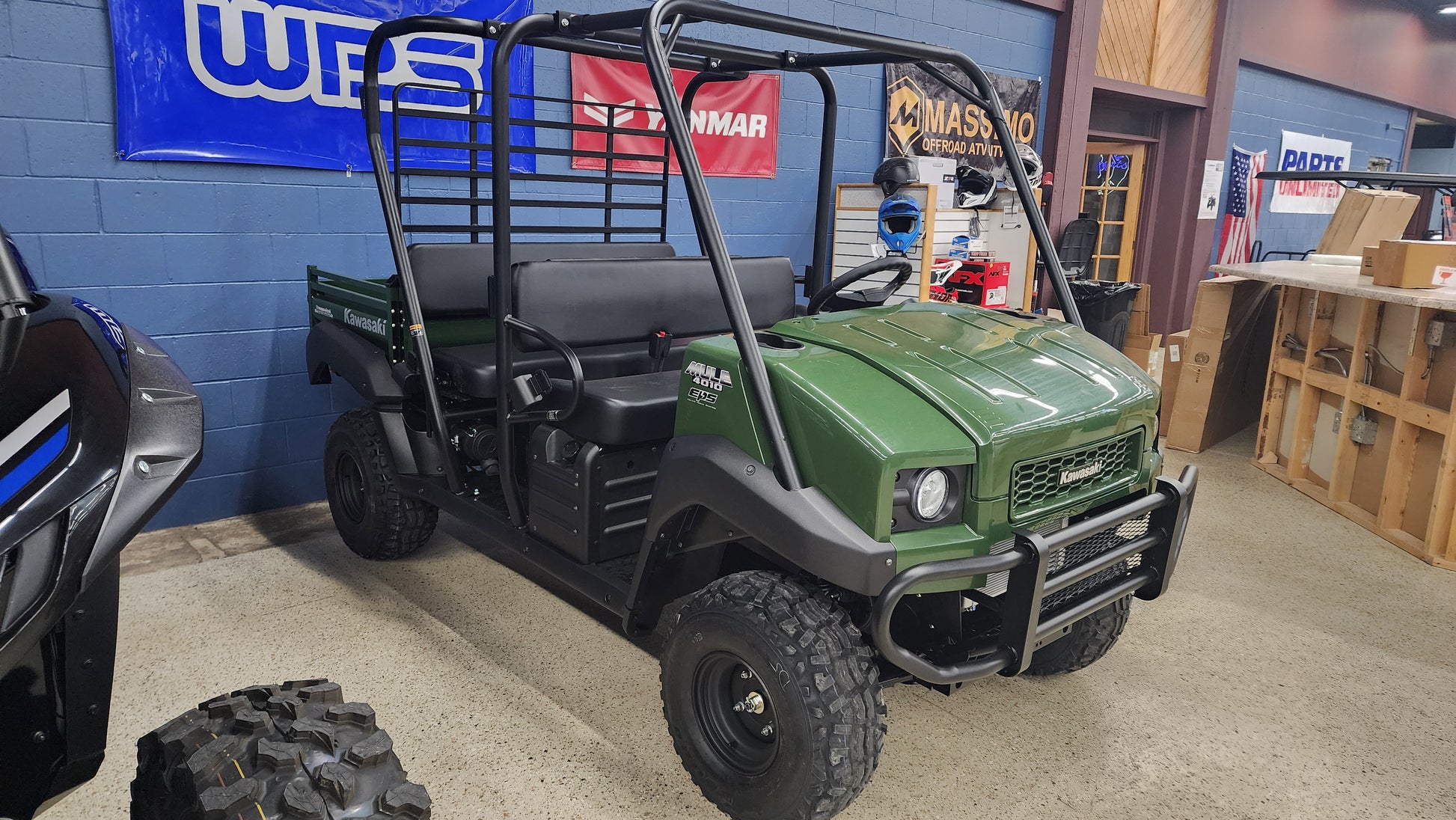

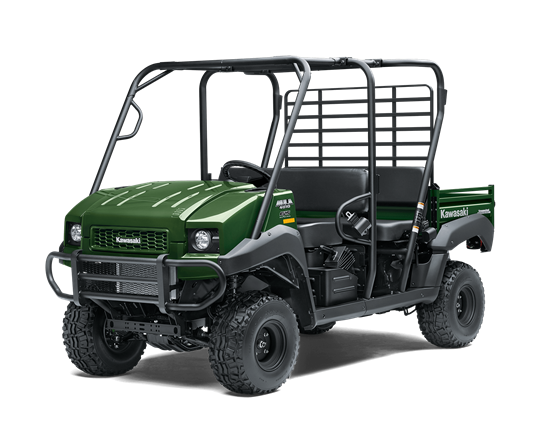

2026 Kawasaki Mule 4010 Trans 4x4
2026 Kawasaki Mule 4010 Trans 4x4
Regular price
$12,799.00 USD
Regular price
Sale price
$12,799.00 USD
Unit price
per

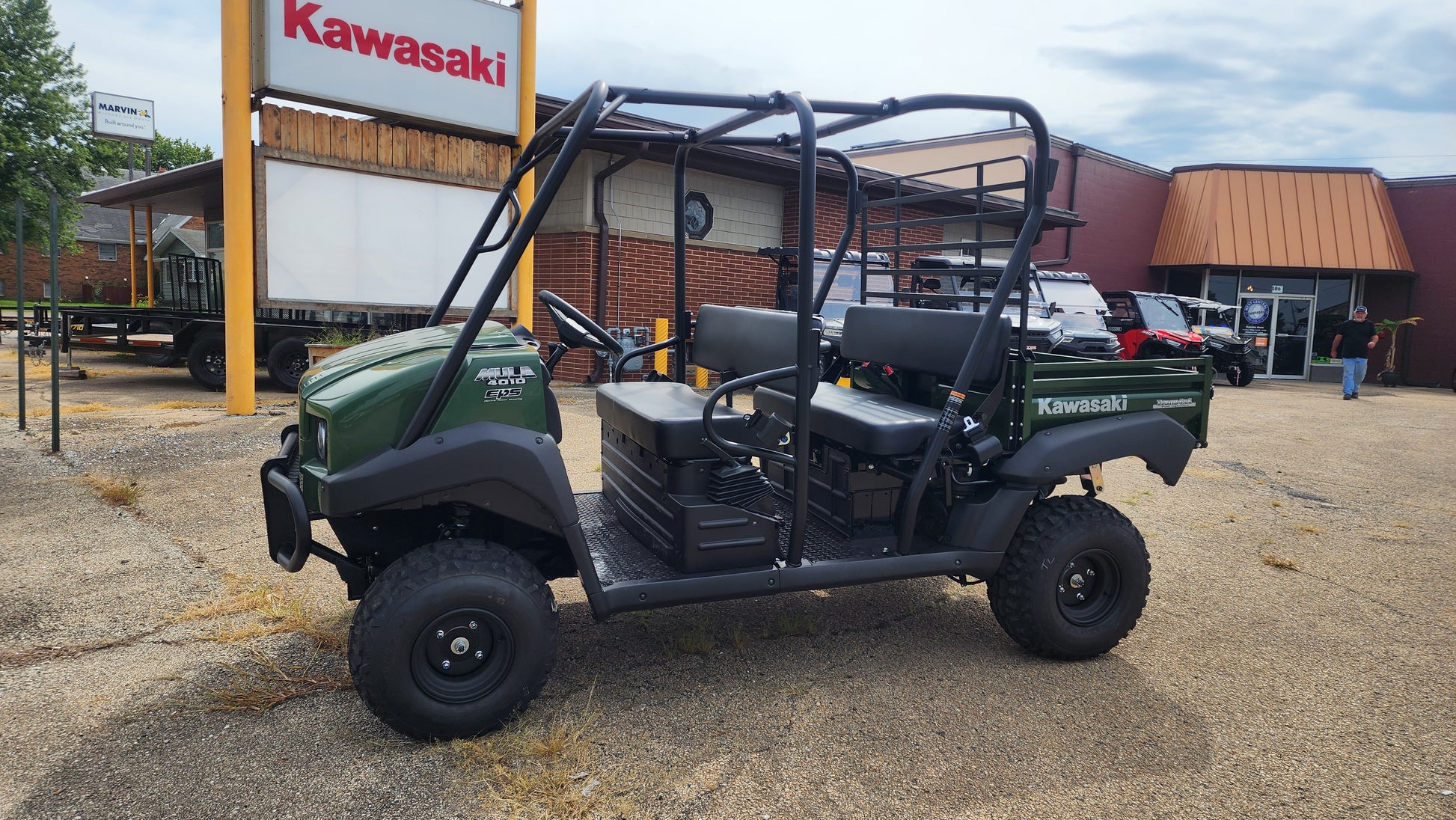

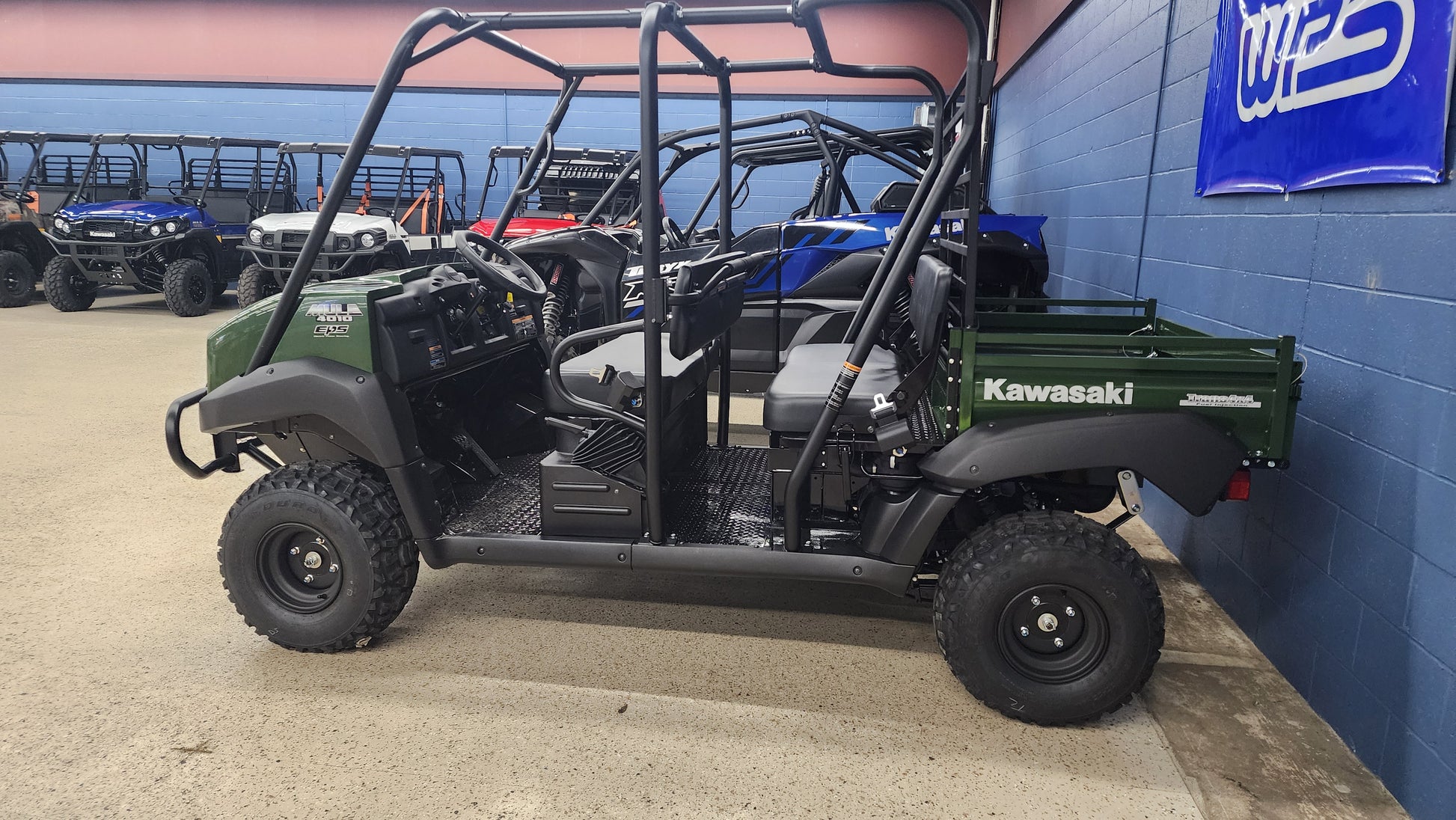

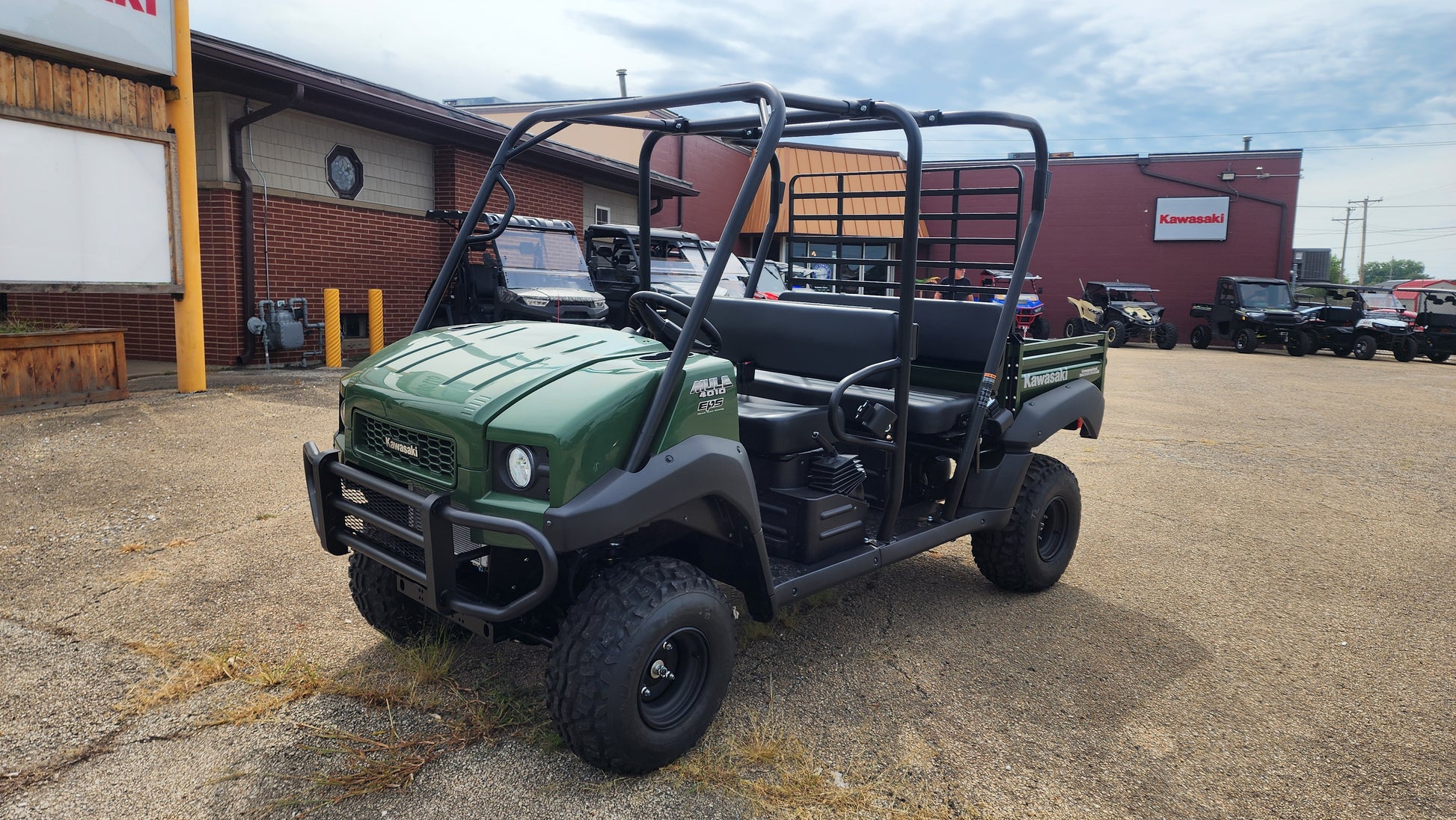

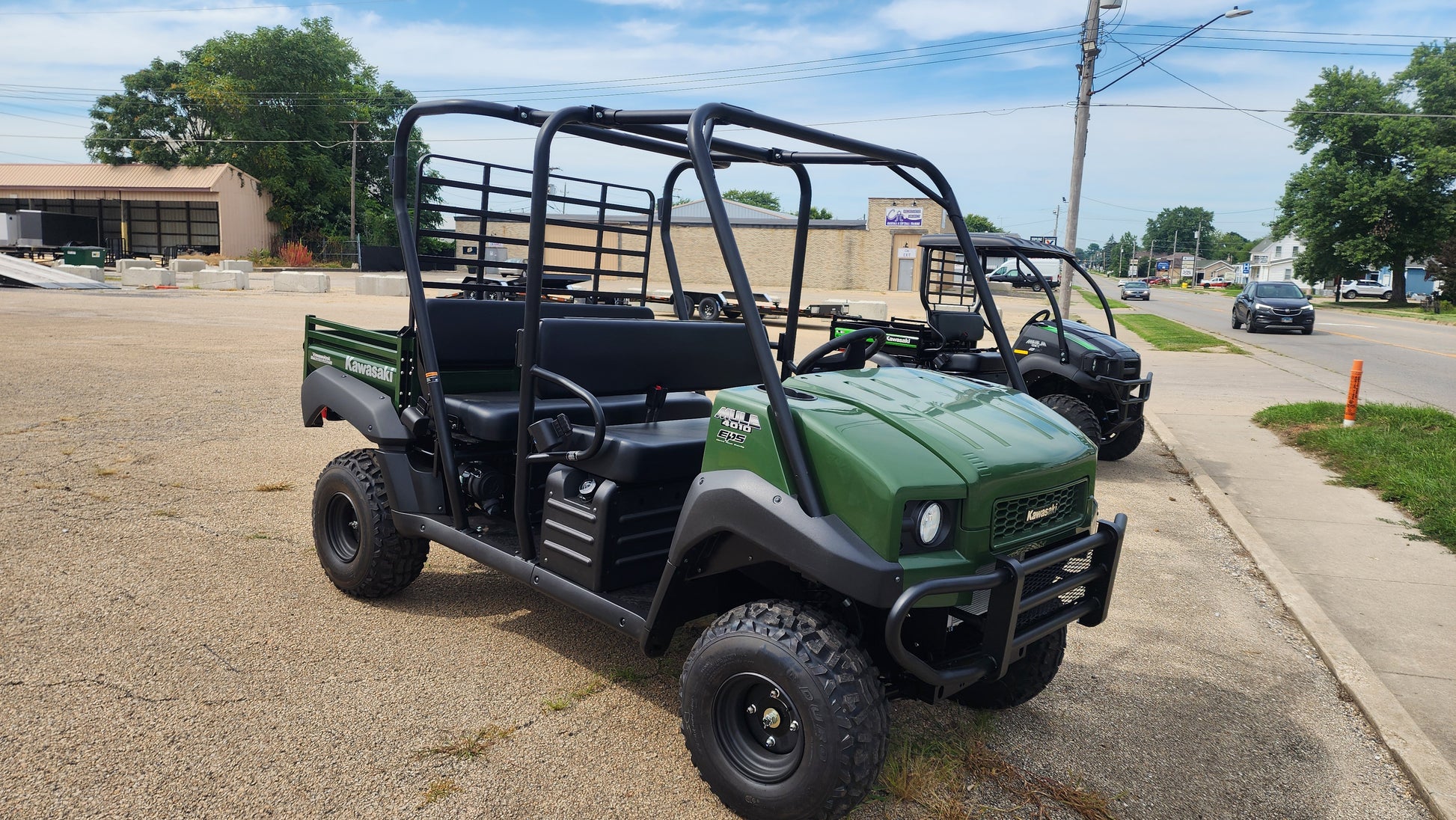

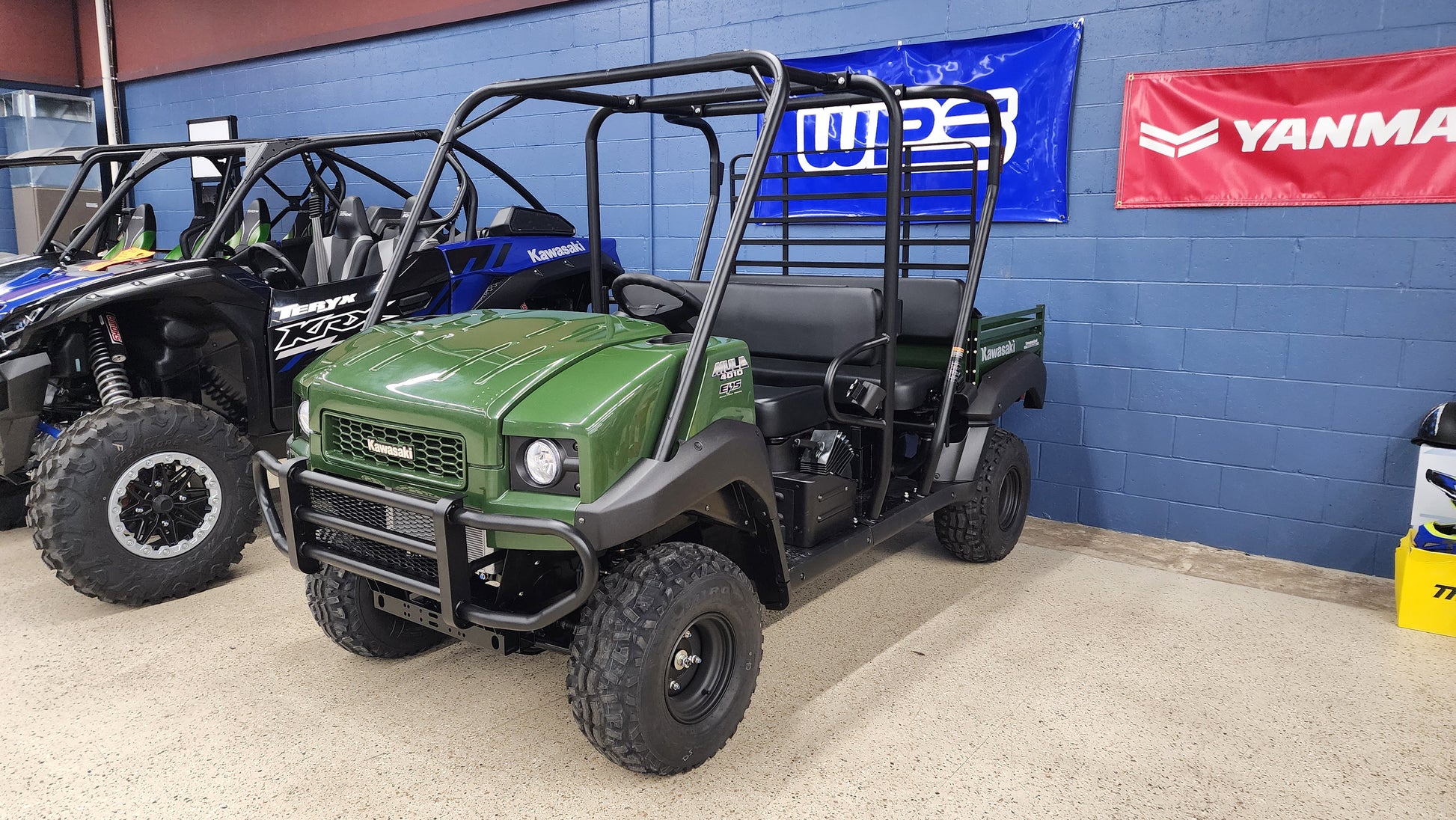

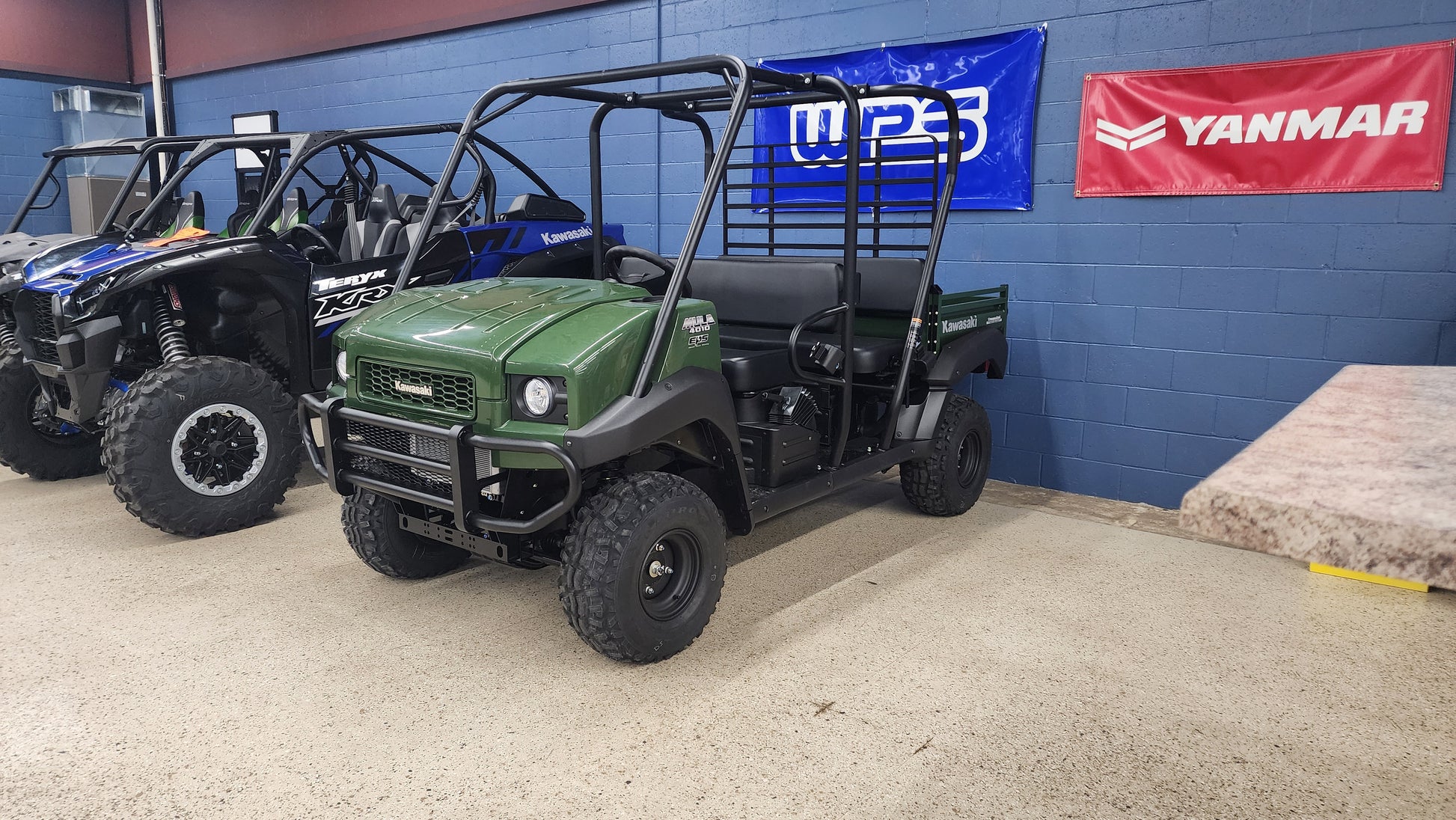

Timberline Green and Dark Royal Red both in stock
| Engine | 4-stroke, 2-cylinder, OHV, 90° V-twin, Liquid-cooled |
|---|---|
| Displacement | 617cc |
| Maximum Horsepower | 20.0 hp¹ @ 3,600 rpm |
| Maximum Torque | 34.7 lb-ft @ 2,500 rpm |
| Bore x Stroke | 76.0 x 68.0mm |
| Compression Ratio | 10:3:1 |
| Fuel System | DFI® with 34mm Mikuni throttle body |
| Transmission | Continuously Variable Transmission (CVT) with (H,L,N,R) |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock |
| Engine Braking | No |
| Alternator Output (max) | 23 amp |
| Front Suspension / Wheel Travel | MacPherson Strut/3.9 in |
|---|---|
| Rear Suspension / Wheel Travel | DeDion Axle/2.8 in |
| Front Tires | 23 x 11-10 |
| Rear Tires | 23 x 11-10 |
| Steering | Rack-and-pinion w/ Electric Power Steering (EPS) |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Park Brake Type | Independent, mechanical drum |
| Ground Clearance | 7.1 in |
| Fuel Capacity | 6.3 gal |
| Turning Radius | 12.8 ft |
| Cargo Bed Dimensions (LxWxH) | 50.4 x 47.6 x 11.2 in (2-person) / 30.3 x 47.6 x 11.2 in (4-person) |
| Cargo Bed Load Capacity | 800 lb (2-person) / 401 lb (4-person) |
| Payload Capacity | 1,330 lb |
| Seating Capacity | 2-4 |
| Towing Capacity | 1,200 lb |
| Lighting | (2) Halogen headlights, (2) tail/brake lights |
| Overall Length | 128.5 in |
|---|---|
| Overall Width | 58.5 in |
| Overall Height | 75.8 in |
| Estimated Dry Weight | 1,521.5 lb** |
| Curb Weight | 1,587.6 lb* |
| Wheelbase | 85.2 in |
| Instruments | Parking brake warning light, coolant temperature warning light, 12V DC outlet, fuel gauge, hour meter |
| Color Choices | Timberline Green, Dark Royal Red |
