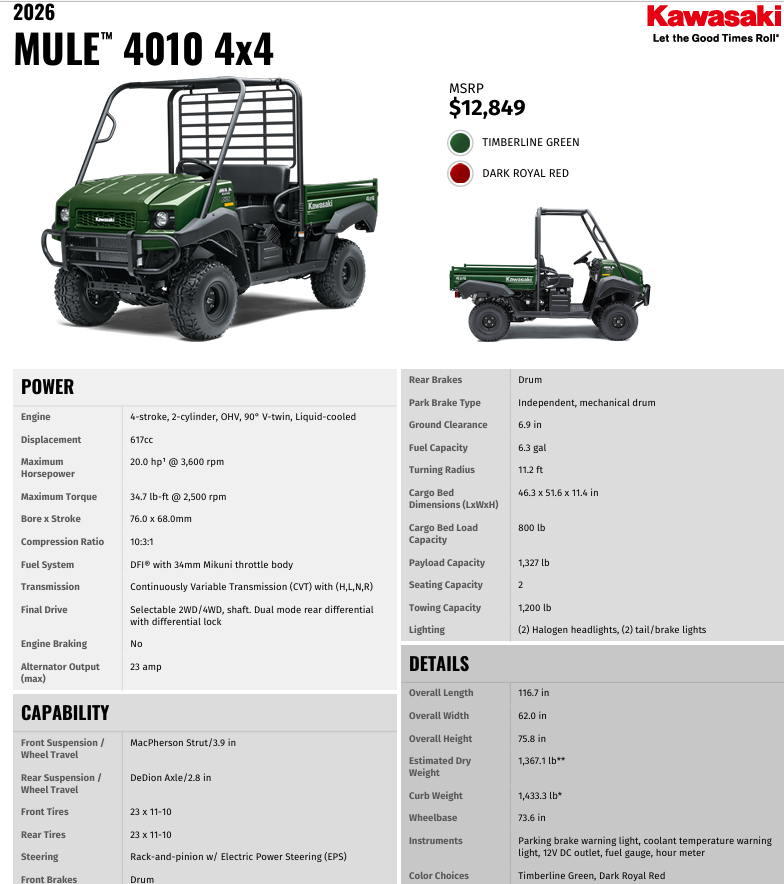

2026 KAF620MTFNN Mule 4010 4x4 EPS

POWER
 Engine 4-stroke, 2-cylinder, OHV, 90° V-twin, Liquid-cooled
 Displacement 617cc
 Maximum
 Horsepower
 20.0 hp¹ @ 3,600 rpm
 Maximum Torque 34.7 lb-ft @ 2,500 rpm
 Bore x Stroke 76.0 x 68.0mm
 Compression Ratio 10:3:1
 Fuel System DFI® with 34mm Mikuni throttle body
 Transmission Continuously Variable Transmission (CVT) with (H,L,N,R)
 Final Drive Selectable 2WD/4WD, shaft. Dual mode rear differential
 with differential lock
 Engine Braking No
 Alternator Output
 (max)
 23 amp
 CAPABILITY
 Front Suspension /
 Wheel Travel
 MacPherson Strut/3.9 in
 Rear Suspension /
 Wheel Travel
 DeDion Axle/2.8 in
 Front Tires 23 x 11-10
 Rear Tires 23 x 11-10
 Steering Rack-and-pinion w/ Electric Power Steering (EPS)
 Front Brakes Drum
 Rear Brakes Drum
 Park Brake Type Independent, mechanical drum
 Ground Clearance 6.9 in
 Fuel Capacity 6.3 gal
 Turning Radius 11.2 ft
 Cargo Bed
 Dimensions (LxWxH)
 46.3 x 51.6 x 11.4 in
 Cargo Bed Load
 Capacity
 800 lb
 Payload Capacity 1,327 lb
 Seating Capacity 2
 Towing Capacity 1,200 lb
 Lighting (2) Halogen headlights, (2) tail/brake lights
 DETAILS
 Overall Length 116.7 in
 Overall Width 62.0 in
 Overall Height 75.8 in
 Estimated Dry
 Weight
 1,367.1 lb**
 Curb Weight 1,433.3 lb*
 Wheelbase 73.6 in
 Instruments Parking brake warning light, coolant temperature warning
 light, 12V DC outlet, fuel gauge, hour meter

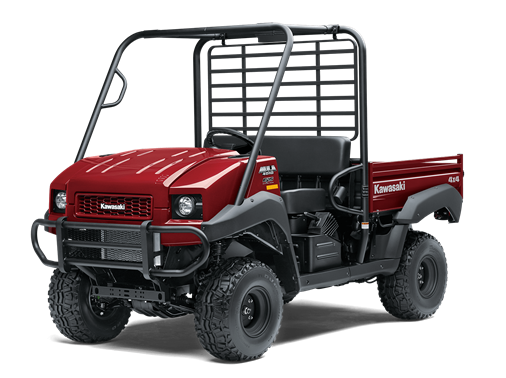

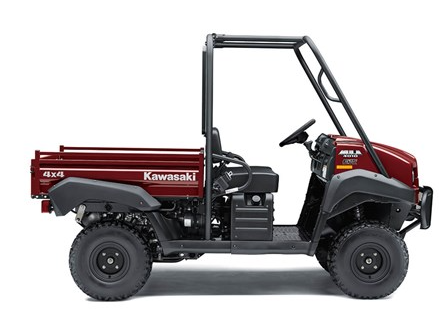

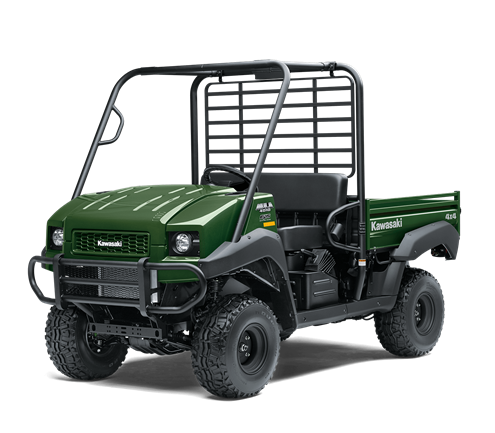

 Color Choices Timberline Green, Dark Royal Red
