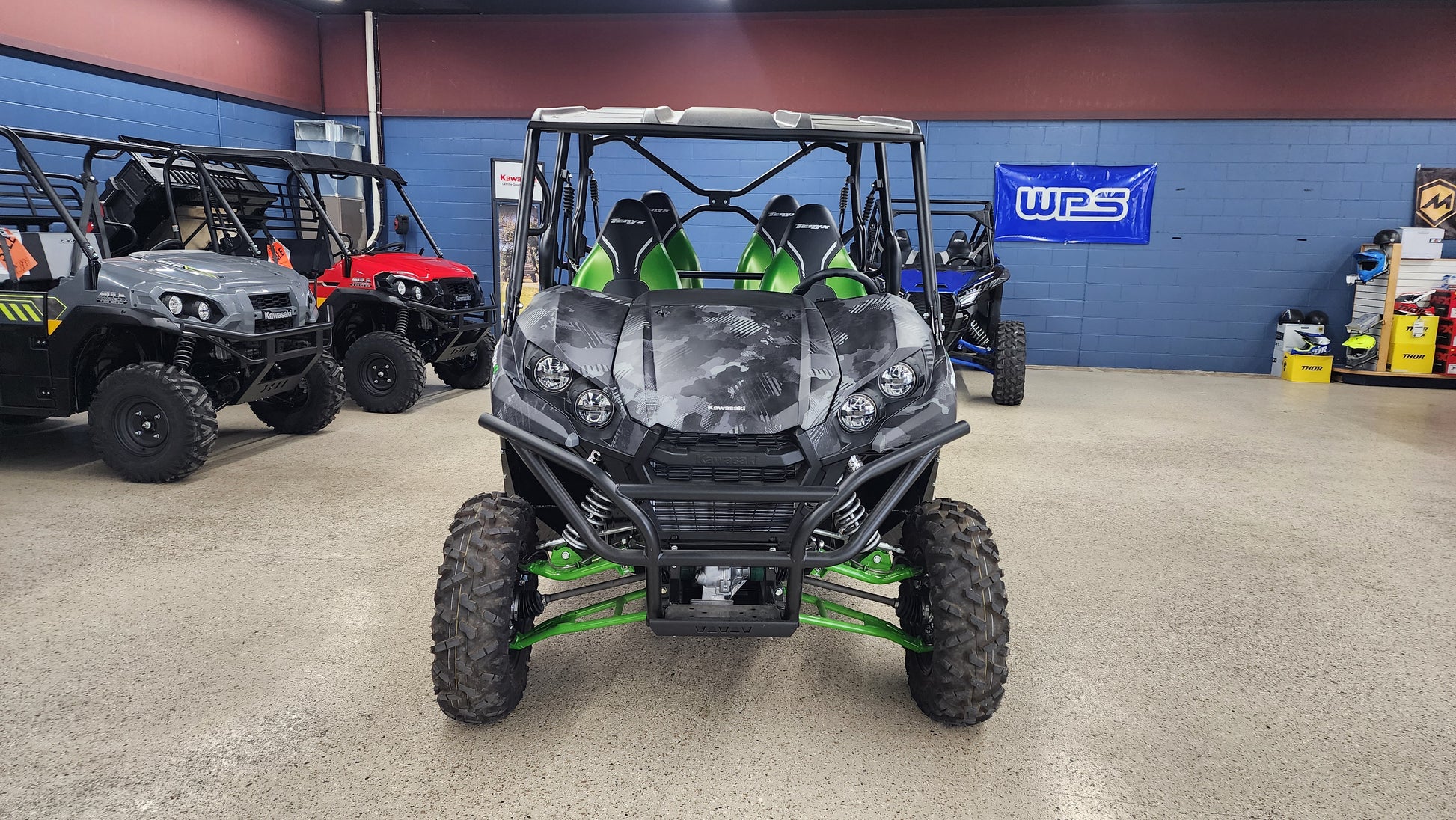

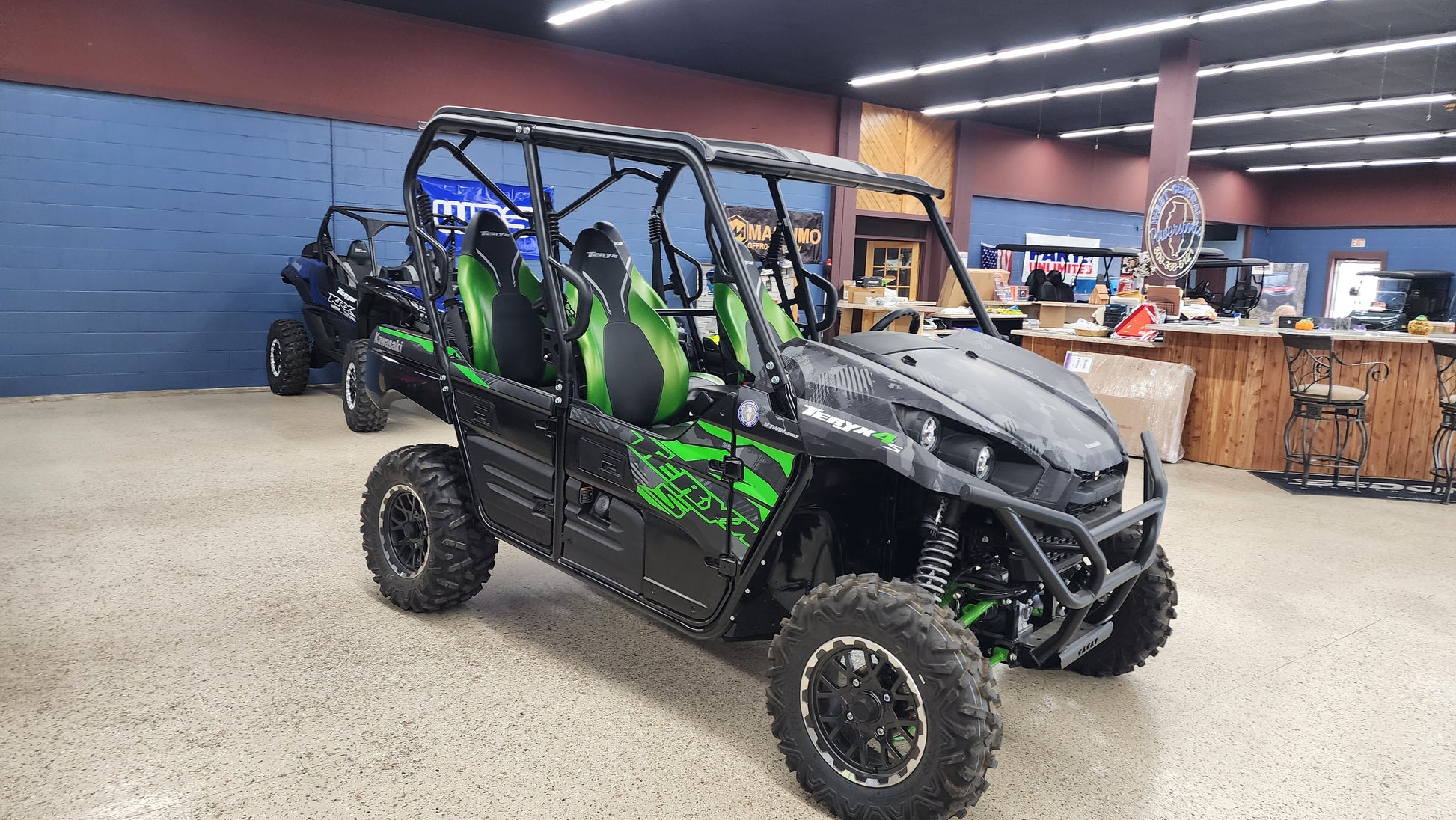

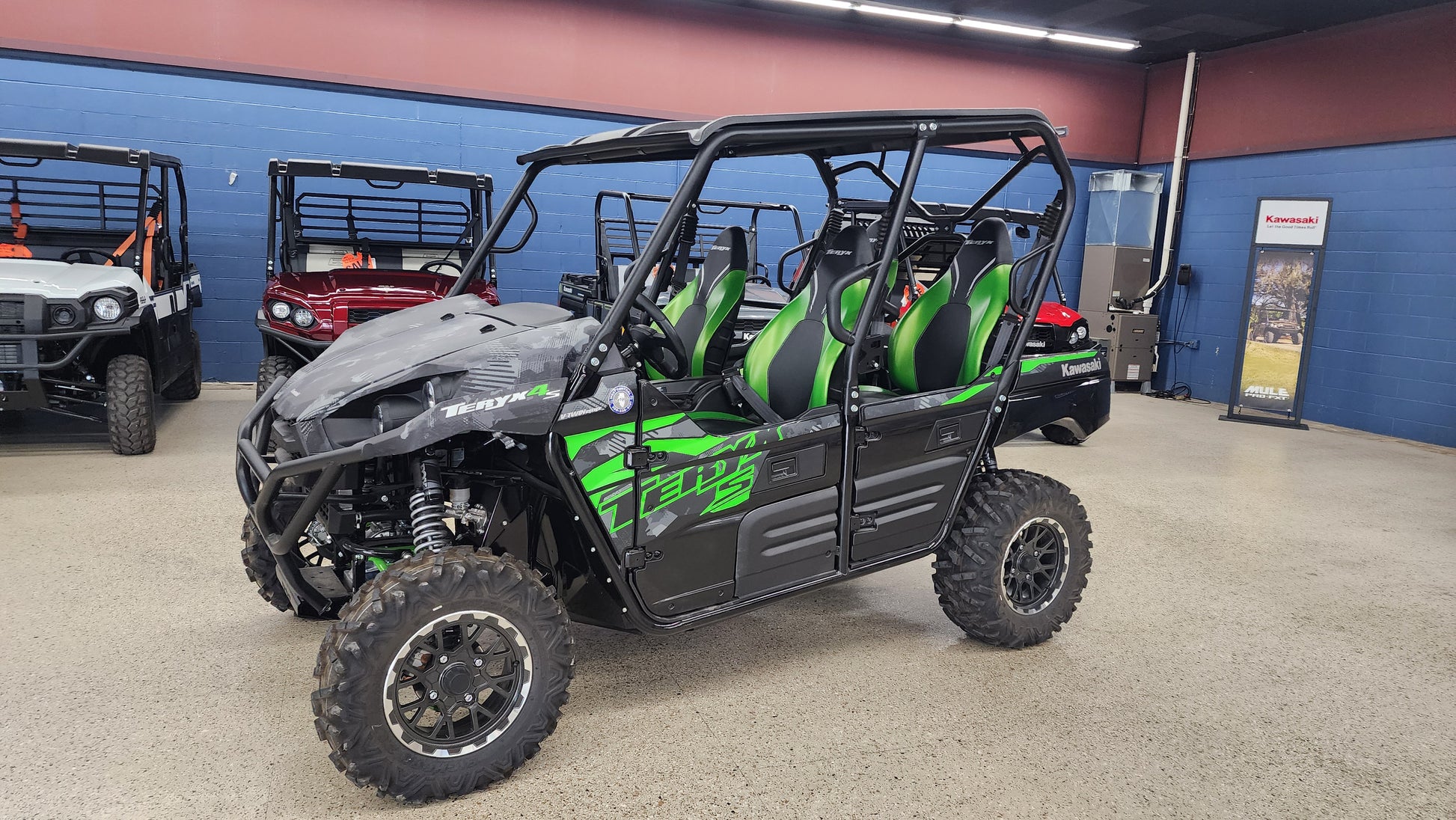

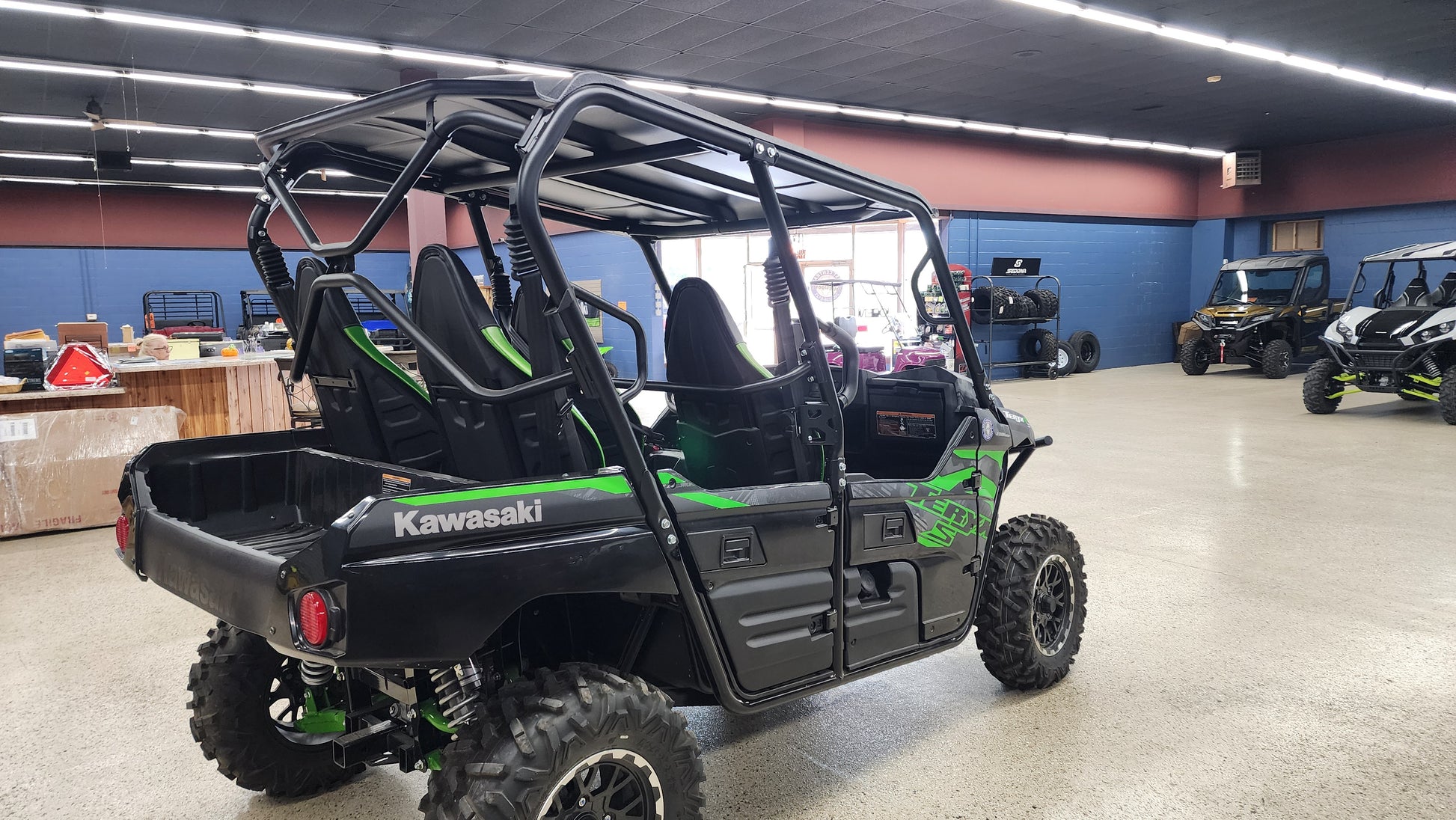

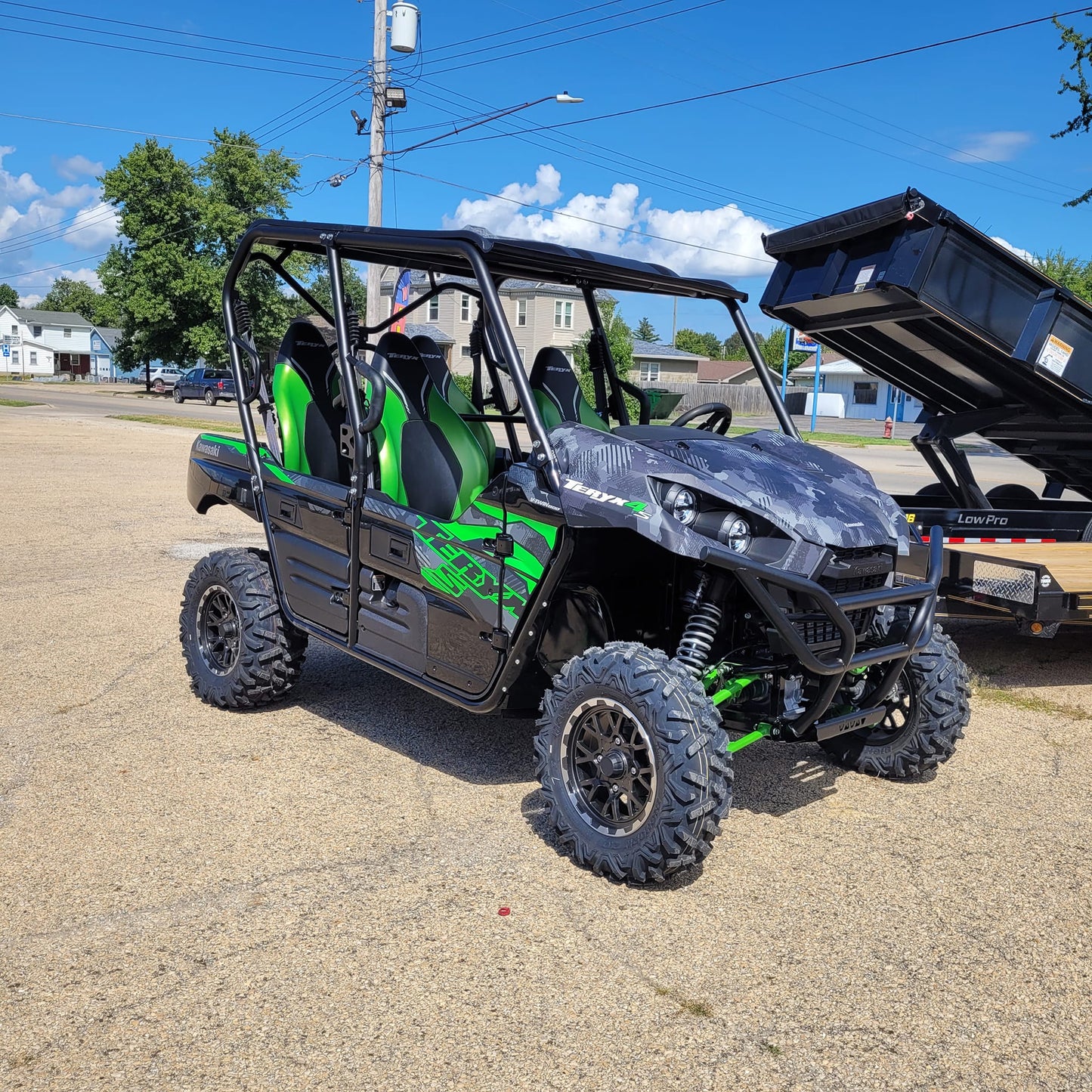

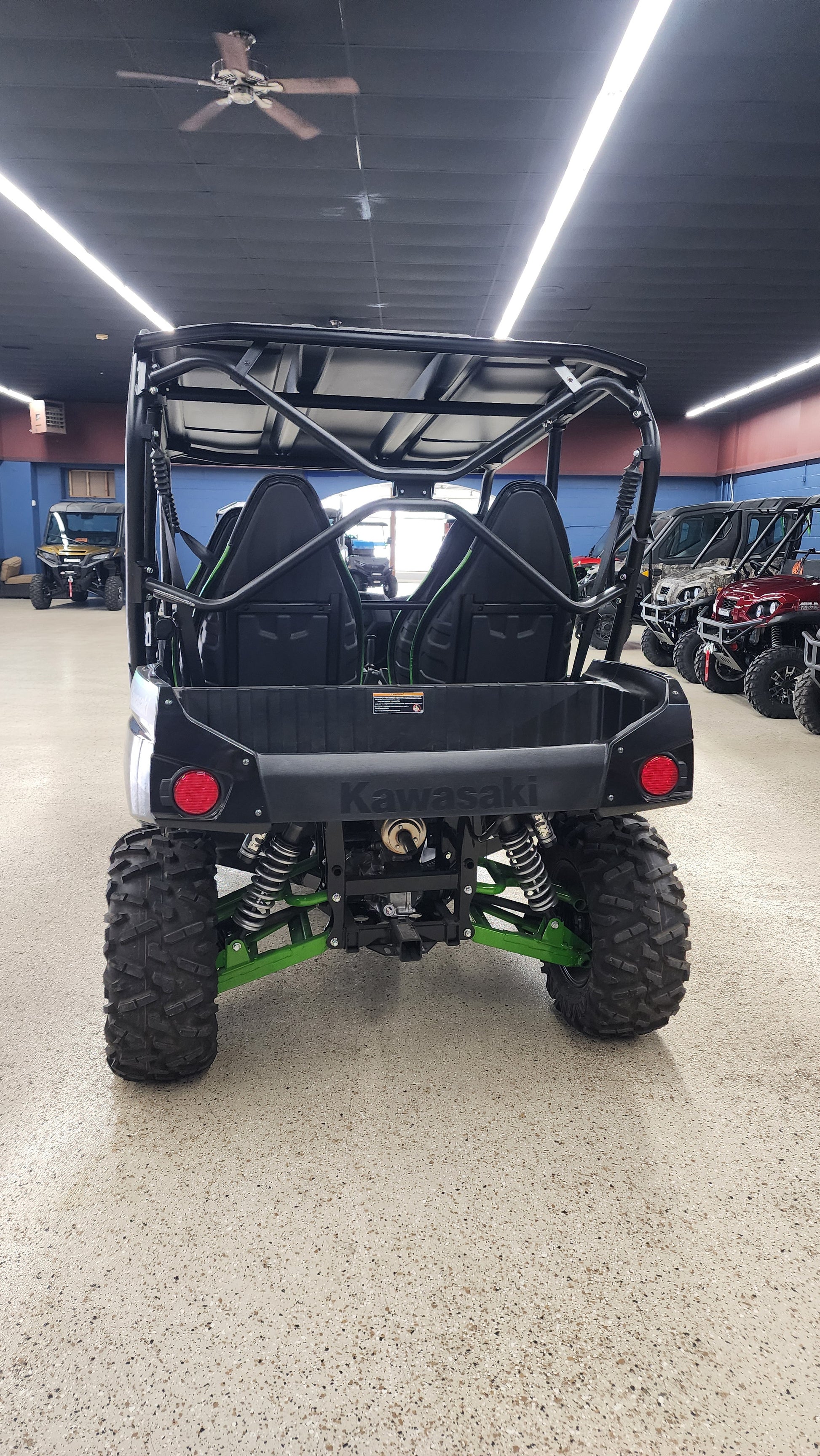

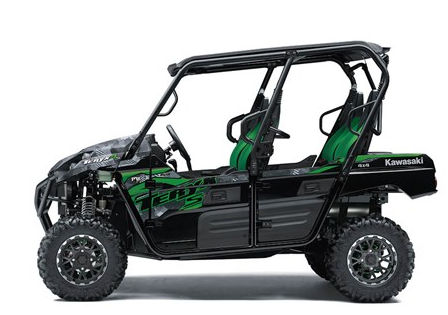

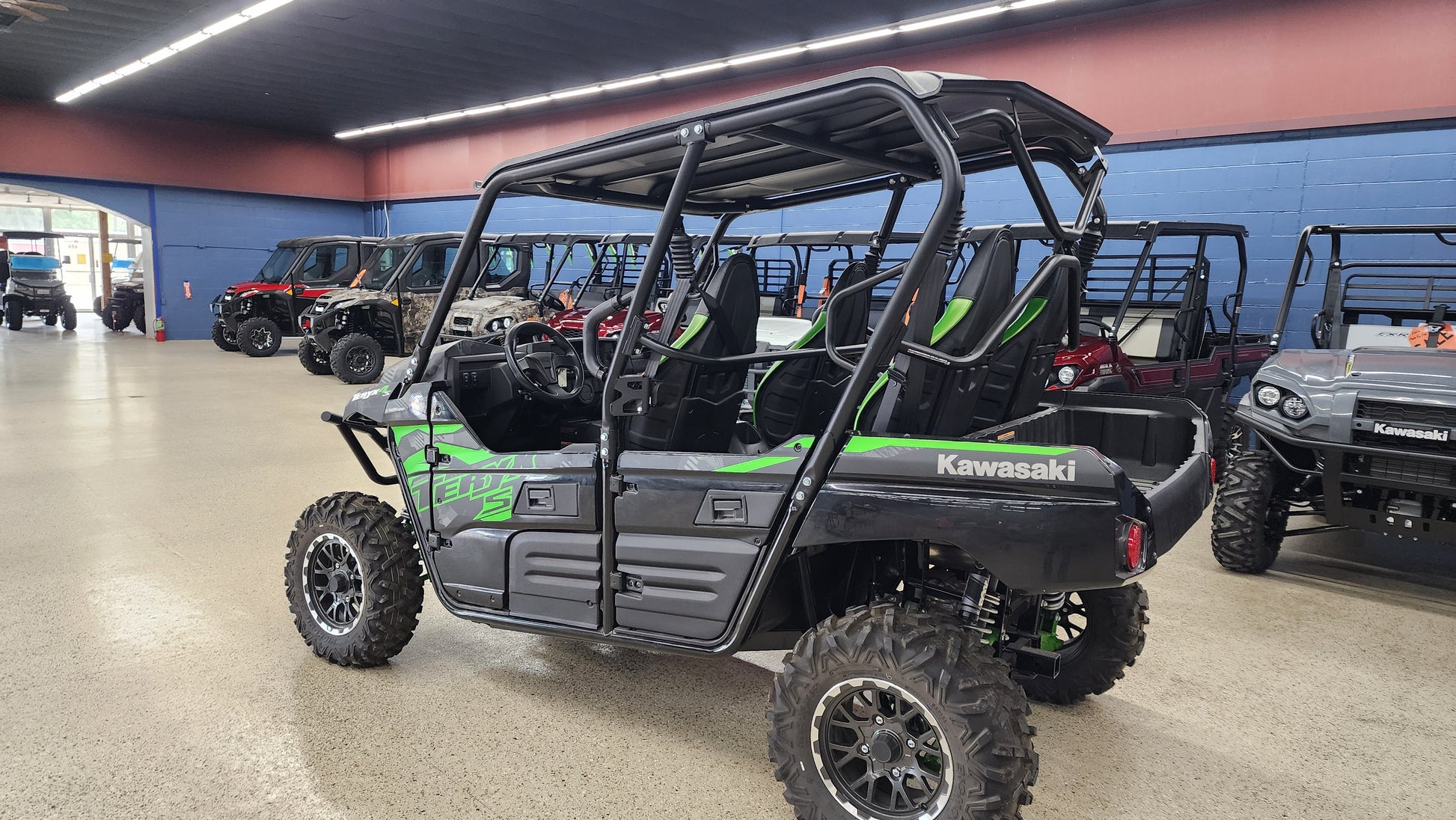

Kawasaki TERYX4™ S LE

POWER
Engine 4-stroke, SOHC, 4-valve V-twin, liquid-cooled
Displacement 783cc
Maximum Torque 47.0 lb-ft @ 5,500 rpm
Bore x Stroke 85.0 x 69.0mm
Compression Ratio 10.7:1
Fuel System DFI® with (2) 36mm Mikuni throttle bodies
Ignition TCBI with electronic advance
Starting System Electric
Transmission Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive Selectable 2WD/4WD with locking front differential, shaft
Engine Braking Yes

CAPABILITY
Front Suspension /
Wheel Travel
Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully
adjustable preload, and adjustable compression
damping/10.7 in
Rear Suspension /
Wheel Travel
Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully
adjustable preload, and adjustable compression
damping/10.0 in
Front Tires Maxxis® 27 x 9-14
Rear Tires Maxxis® 27 x 11-14
Steering Electric Power Steering (EPS) / rack-and-pinion
Front Brakes Dual hydraulic discs with 2-piston calipers
Rear Brakes Sealed, oil-bathed, multi-disc
Ground Clearance 11.2 in / 12.2 in
Fuel Capacity 7.9 gal
Turning Radius 17.7 ft
Cargo Bed
Dimensions (LxWxH)
17.9 x 47.6 x 8.7 in
Cargo Bed Load
Capacity
249 lb
Payload Capacity 1,000 lb
Seating Capacity 4
Towing Capacity 1,300 lb
Lighting (4) LED headlights, (2) LED taillights, LED stoplight

DETAILS
Frame Steel Tube Double-X Reinforcement
Overall Length 125.4 in
Overall Width 62.6 in
Overall Height 80.5 in
Curb Weight 1,638.3 lb* / 1,640.5 lb* CA Model
Wheelbase 88.2 in

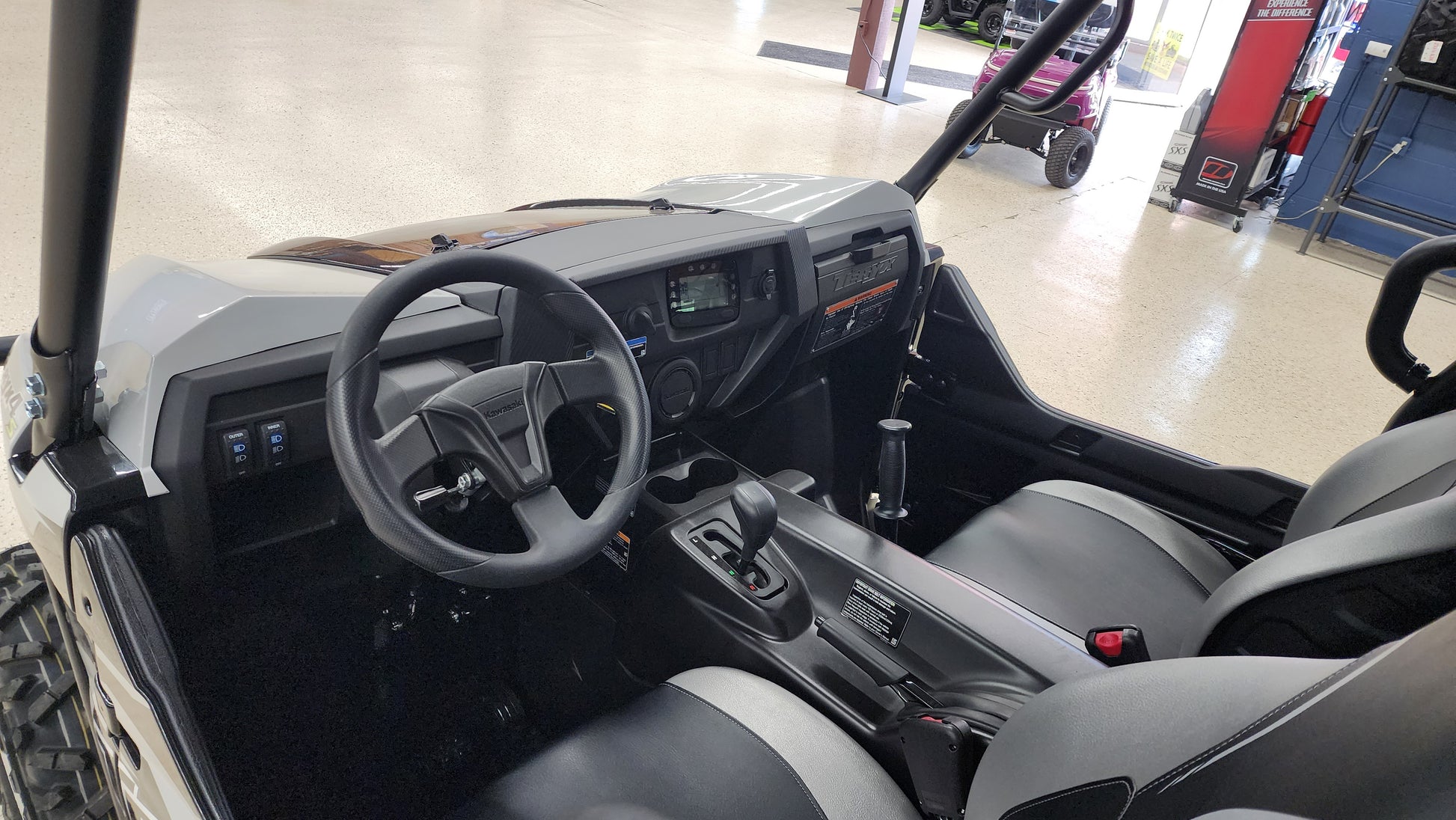

Instruments Multi-function digital meter with speedometer, fuel
gauge, clock, hour meter, odometer, dual trip meter and
parking-brake indicator, R/N/P/4WD, water temp and
low-oil-pressure indicators
Wheel Type Alloy
Additional Features Roof
Color Choices Ice Gray/Super Black, Metallic Matte Twilight Blue/Super
Black, Cypher Camo Gray/Super Black
